Choosing a Welding Booth: Universal, Standard, or Custom?

Summary

Before you compare specs, think about how you actually use your space. This guide walks through the questions worth asking before you buy a welding booth, then breaks down our three panel systems — Universal, Standard, and Custom — so you can match a tier to your shop instead of the other way around.

Every shop asks the same question eventually: which welding booth actually fits how we work? The honest answer isn't "the biggest one" or "the cheapest one", it's the one that matches how your space changes (or doesn't) over time.

Every FumeXtractors booth tier is built from durable, fire-resistant steel panels and meets NFPA and OSHA requirements. What changes between tiers is how far the system flexes, and what you pay for that flexibility.

Start With Your Space, Not the Spec Sheet

Before you look at gauge thickness or panel counts, ask yourself these four questions. They'll point you toward the right tier faster than any spec comparison.

Will your layout change?

If you reconfigure or relocate often, look at Universal. If your layout is fixed, Standard is likely the better fit.

What's your budget?

If cost is the driver and your layout is simple, the Standard 14ga two-panel system delivers a compliant booth without the extras.

Will standard-sized booths work?

If you're dealing with an odd footprint, tight columns, or unique specs, Custom engineered panels remove those constraints.

Do you need fume extraction?

The top-mounted FX-WM Series adds on to any of the three tiers, so this doesn't have to drive your panel choice.

Keep those four answers in mind as you read through the tiers below — they'll do most of the deciding for you.

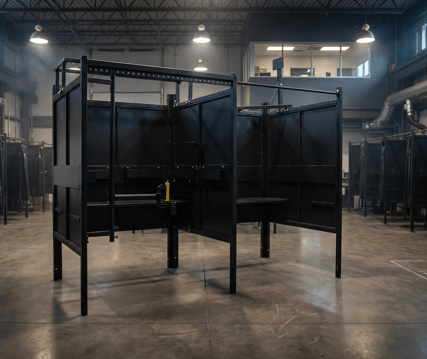

Universal Panel Systems: Built to Evolve With Your Shop

Best for: Shops that change over time — schools with growing enrollment, production floors with shifting workflows, or any facility that expects to move, expand, or reconfigure.

Universal is our most popular tier, and for good reason. It's a modular, single bolt-together panel with a patented bolt-on accessory system — no drilling required. Add a station, remove one, or relocate the whole line as your operation changes.

✓ Infinitely reconfigurable
✓ No drilling required — patented bolt-on accessories
✓ Fast, tool-light assembly
✓ 12 Ga. double-panel, fire-resistant construction
✓ ADA compliant

If you're outfitting a training facility, this is the tier that adapts as curriculum and enrollment change without triggering a renovation. In production, it's the tier that lets you respond to a new product line in hours, not weeks.

See Full Universal Panel Specs →

Standard Panel Systems: Cost-Effective and Compliant

Best for: Fixed layouts on a budget — facilities that know their footprint won't change and want a durable, compliant booth without paying for flexibility they won't use.

Standard trades some of Universal's flexibility for a lower total cost. It's a bolt-together, 2-panel system covering the side and back of the booth — durable 14 Ga. steel construction, NFPA and OSHA compliant, without the premium accessory ecosystem.

✓ 2-panel system (side & back)
✓ Durable 14 Ga. steel construction
✓ Multiple accessories available
✓ ADA compliant

This is the tier we recommend when a straightforward welding shop layout won't need to change — a permanent production line, a fixed-classroom vocational program, or any facility prioritizing budget over reconfigurability.

See Full Standard Panel Specs →

Custom Panel Systems: Engineered to Your Footprint

Best for: Complex, non-standard designs — odd footprints, columns and cranes in the way, oversized fabrications, or facilities that need to squeeze maximum booth count into a fixed room.

When off-the-shelf sizing limits your productivity, Custom Panel Systems are engineered to your exact size specifications and manufactured to last, backed by expert consultation from design through delivery.

✓ Custom sizing
✓ Engineered solutions
✓ Expert consultation
✓ ADA compliant

Fabrication shops use Custom to fit oversized assemblies and pipe jigs, or to upgrade to heavier-gauge steel for continuous heavy-duty processes. Training programs use it to maximize AWS-compliant booth count within a fixed lab. Production floors use it to build around existing columns, cranes, and ductwork instead of around it.

See Full Custom Panel Details →

Add-On: Top-Mounted Fume Extraction

Whichever tier you land on, fume extraction doesn't need to be a separate decision. Using a proprietary mounting bracket, the FX-WM Series adds seamlessly to the top of any FumeXtractors welding booth, delivering powerful source-capture filtration for one or two welding stations simultaneously.

✓ Mounts to booth wall — no floor footprint
✓ 360° articulating extraction arms
✓ Serves 1–2 welding stations
✓ Multi-stage NANO filtration (HEPA optional)
✓ OSHA & ACGIH compliant

How We Work: Design the Layout, Get It Installed

Most equipment suppliers sell you panels and leave the layout, the compliance review, and the install to you. Our process runs four stages so the booth that lands on your floor is the one your work actually calls for, at the price point that fits.

1. Consultation

We start with the work being done: process, duty cycle, part size, floor space, and budget. Then we walk all three tiers — Universal, Standard, Custom — and break down the value of each so the trade-offs are plain before anyone quotes a number.

2. Design

Expert consultation and CAD layout design to optimize your welding booth configuration. We help you maximize space efficiency and workflow, and review the layout against NFPA and OSHA requirements before you buy.

3. Purchase & Delivery

One order covers panels, accessories, and optional top-mounted fume extraction — booth and extraction from the same supplier, sized to the drawing you already approved.

4. Installation (optional)

Professional installation by certified contractors. We connect you with a Preferred 3rd Party Installer in your area for turnkey booth setup — or hand your crew the drawings and let them bolt it together.

Compare that to the typical alternative: dimensions taken over the phone, a layout and compliance question left to you, panels from one vendor and extraction from another with no drawing to check them against, and pallets dropped at the dock.

Quick Comparison

Universal Panel — 12 Ga. double panel · single bolt-together panel · infinitely reconfigurable · best for shops that grow & change

Standard Panel — 14 Ga. double panel · 2-panel (side & back) · basic reconfiguration · best for fixed, budget-conscious layouts

Custom Panel — engineered to spec · fixed to design · best for unique facilities

All three tiers meet NFPA, OSHA, and ADA requirements. Only the flexibility changes.

FAQs: Choosing a Welding Booth

What booth sizes are available in each tier?

Universal ships in 5×5 and 6×6 (AWS standard), built from 4', 5', and 6' panel modules that combine into other sizes. Standard ships in 4×4, 5×5, and 6×6. Custom is built to your exact width, height, and depth — no standard sizing to work around.

What's the lead time on a welding booth?

Standard tier typically runs about a 16-week lead time. Universal and Custom timelines vary by configuration and order volume, your sales representative can confirm current lead times when you request a quote.

What's the practical difference between 12ga and 14ga steel?

Both are durable, fire-resistant double-panel steel construction. 12 Ga. (Universal) is thicker and holds up best under continuous, heavy-duty use. 14 Ga. (Standard) is lighter-gauge but still meets NFPA and OSHA requirements for standard shop conditions. Custom panels can be upgraded to 10ga or 12ga for heavy MIG or flux-core applications.

Is stainless steel available?

Yes, on request, for facilities that need extra corrosion resistance beyond our standard powder-coated steel.

Do all three tiers meet the same safety standards?

Yes. NFPA, OSHA, and ADA compliance is standard across Universal, Standard, and Custom Panel Systems — compliance isn't a reason to choose one tier over another. What changes is configurability and construction gauge, not safety.

Can I add accessories like curtains, tool trays, or lighting to any tier?

Yes. All tiers support our standard accessory line — welding curtains, curtain rods, tool trays, work lights, and positioners. Universal's patented bolt-on system just makes adding or repositioning those accessories faster and drill-free.

Do I need a contractor to install my booth?

No. installation is optional. Universal and Standard systems bolt together with basic hand tools, and one person can often assemble a complete booth. If you'd rather not do it yourself, we can connect you with a Preferred 3rd Party Installer in your area for turnkey setup.

Can I mix a Custom section into a Universal or Standard layout?

Yes. Many facilities run Universal or Standard booths across most of the floor and add a Custom booth for one oversized or awkward bay, rather than converting the whole layout. Our free layout design service can help plan this out.

Ready to compare your options? Send us your floor plan and we'll design the layout and price all three tiers against it.
