7 Key Advantages of Using Portable Fume Extractors in Your Workplace
Summary
Portable fume extractors are source-capture systems that remove welding fumes, smoke, and airborne dust directly at the point of generation, before contaminants reach a welder's breathing zone. They combine a high-efficiency motor, a multi-stage filter system, and an articulating extraction arm to capture hazardous particles at the source. Fume Xtractors offers three portable models to match shops ranging from heavy production welding to confined-space fieldwork. All models feature all-steel construction, 360° articulating arms, and a two-year limited warranty.
What Is a Portable Fume Extractor?

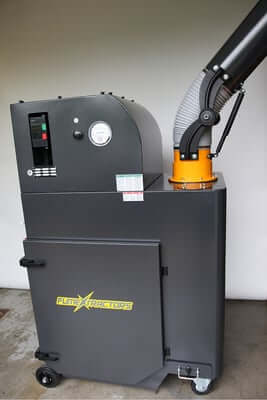

A portable fume extractor is a self-contained, mobile air filtration unit that captures welding fumes, smoke, and metalworking dust directly at the source. It uses an articulating extraction arm (also called a fume arm or snorkel) connected to a high-efficiency blower and multi-stage filter system to draw hazardous airborne contaminants away from a welder's breathing zone before they can disperse into the shop.
Unlike ambient air cleaners that filter shop air after fumes have already spread, portable fume extractors use source capture — positioning the hood within a few feet of the weld point to collect contaminants at their origin. This makes them one of the most effective and OSHA-recognized methods for controlling weld fume exposure.
Fume Xtractors portable units deliver up to 1,200 CFM of airflow, feature fully welded steel housings, and are designed for 1–2 shift daily operation across MIG, TIG, Flux Core, and Stick welding applications.
Is a Portable the Right Fit for Your Shop?

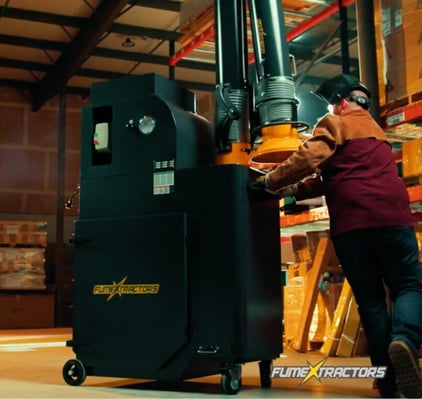

The primary advantage of a portable is mobility, it can travel between workstations and reposition around large weldments. The tradeoff is filter media volume: a portable unit, by design, holds less filter media than a fixed or central extraction system, which affects filter life.
A portable is likely the right choice if you:
- Weld on large pieces or in multiple locations throughout the shop
- Work in confined spaces or on job sites that require mobile equipment
- Need source capture without committing to fixed ductwork or infrastructure
- Are looking for an affordable, plug-and-play fume extraction solution
Consider a fixed solution if you:
- Weld on small, consistent parts in the same location every day
- Run more than two shifts and need maximum filter capacity
- Have a centralized welding area where ducted extraction is practical
7 Benefits of Portable Fume Extractors
Here are 7 different ways you can benefit:
1. Affordable & Fast
Portable fume extraction systems require no installation, no special wiring, and no complex setup. The Mid-Duty Portable, for example, plugs directly into a standard 20-amp circuit and is ready to use out of the box.
Units can be purchased individually and scaled as your shop grows, making portables one of the lowest total-cost fume extraction options available.
2. Longer Filter Life
Fume Xtractors pulsing portables feature a manual jet pulse cleaning system combined with 250 sq. ft. of high-capacity nanofiber filter media.
Pulsing the unit 2–3 times daily forces accumulated dust into a clean-out bin, keeping filters operating at peak efficiency. With proper maintenance, filter life reaches 3–4 months — compared to 1.5–3 months on non-pulsing units.
The Mid-Duty model uses a multi-stage filter system: an aluminum mesh spark arrestor, a pleated pre-filter, a V-Cell fine particulate filter, and optional Carbon and HEPA stages for demanding applications.
3. Double the Suction Distance
A powerful motor (1.5–2 HP depending on model) paired with an advanced diffuser configuration allows the extraction hood to be placed farther from the weld zone than competing units.
Arm lengths of 7 or 10 feet give welders full mobility and sightlines without the arm obstructing their work — the number one complaint welders have about portable fume extractors.
4. Pulse Cleaning
The jet pulse cleaning system forces dust and contaminants into a removable collection bin automatically after each use cycle, ensuring filters are used to their maximum capacity before replacement.
This feature — absent from most competing portables — dramatically reduces maintenance downtime and extends consumable life.
5. 360° Movement
A series of articulating joints with 360° rotation allows the suction hood to reposition precisely where it's needed with minimal effort.
On the Mid-Duty model, the smooth extraction arm holds position without sagging or drift, keeping capture exactly at the source.
6. Rugged Construction
Unlike competitor units built with plastic housings that crack and melt in hot shop environments, Fume Xtractors portables feature fully welded steel construction and metal/aluminum components rated for years of heavy industrial use.
Locking casters and a sturdy handle make repositioning easy without sacrificing durability.
7. Stays Put
External joints and friction plates on the extraction arm prevent drooping over time and allow for easy field tightening — a common failure point on cheaper units that Fume Xtractors has engineered out of the design.
The arm stays exactly where you place it, shift after shift.
Choose the Right Portable for Your Needs
| Model | CFM | Motor | Best For |
| Production Grade Pulsing | 1,100 | 1.5 HP | Heavy-duty welding, high-volume production, 1–2 shifts/day |
| Mid-Duty Portable | 1,200 | 2 HP | Fabrication shops needing production-level performance in a portable footprint |
| Mobile Extractor | 210 | 1.0 HP | Confined spaces, fieldwork, maximum portability (22 lbs.) |
All models carry a two-year limited warranty and are in-stock for fast delivery.
FAQs: Portable Fume Extraction
What are portable fume extractors used for?
Portable fume extractors are used to remove welding fumes, smoke, and metalworking dust directly at the source in fabrication shops and industrial environments.
They are commonly used for MIG, TIG, Flux Core, and Stick welding, as well as grinding, plasma cutting, laser cutting, and polishing applications. They are also well-suited for welding in confined spaces where fixed extraction systems cannot reach.
How does a portable fume extractor work?
A portable fume extractor draws contaminated air through an articulating extraction arm positioned near the weld point.
A high-efficiency motor and aluminum propeller generate airflow (measured in CFM) that pulls fumes and particles through a multi-stage filter system, typically a spark arrestor mesh, a pleated pre-filter, and a fine particulate filter, before returning clean air to the shop.
Pulsing models add a jet-pulse cleaning cycle that automatically clears dust from the filter into a collection bin.
What is the difference between source capture and ambient air filtration?
Source capture positions the extraction hood within a few feet of the fume generation point to capture contaminants before they spread. Ambient air filtration cleans shop air after fumes have already dispersed.
Source capture is more effective at reducing welder exposure and is the method recommended by OSHA and ACGIH for controlling weld fume. Portable fume extractors are source-capture devices.
How often do I need to replace the filters on a portable fume extractor?
Fume Xtractors pulsing portables filter life is 3–4 months with proper daily pulsing (2–3 times per day).
Non-pulsing units average 1.5–3 months depending on usage, welding process, base material, and material cleanliness.
Filter life also depends on how frequently the dust collection bin is emptied. The Mid-Duty model uses separate filter stages (mesh, pre-filter, V-Cell) that can be replaced independently to extend the life of downstream filters.
What CFM do I need for welding fume extraction?
For most MIG, TIG, and Flux Core welding applications, a minimum of 1,000 CFM is recommended for effective source capture at typical arm distances.
Fume Xtractors Production Grade and Mid-Duty portables deliver 1,100 and 1,200 CFM respectively, providing enough airflow to capture fumes at greater hood distances, reducing arm interference with the weld. The Mobile Extractor (210 CFM) is designed for lighter applications and confined-space work where the hood can be positioned very close to the source.
How noisy are portable fume extractors?
The Fume Xtractors Pulsing Portable operates at 77 dB(A) at 3.25 feet. The Mid-Duty Portable operates at 70.75 dB(A). For reference, OSHA's permissible exposure limit for continuous noise is 90 dB(A) over an 8-hour shift, and hearing conservation programs are required above 85 dB(A). Both models fall well within safe operating ranges for most shop environments.
Do portable fume extractors require special installation or wiring?
No. Fume Xtractors portables plug into standard electrical circuits, the Mid-Duty model uses a standard 20-amp outlet and requires no special wiring or permanent installation.
Units arrive ready to use with no ductwork or infrastructure required, making them one of the fastest fume extraction solutions to deploy.
What welding processes are portable fume extractors compatible with?
Fume Xtractors portables are designed for MIG/GMAW, TIG/GTAW, Flux Core/FCAW, and Stick/SMAW welding.
They are also suitable for plasma cutting, laser cutting, grinding, and polishing applications.The Mobile Extractor's magnetic base nozzle makes it especially practical for confined-space welding and fieldwork.
